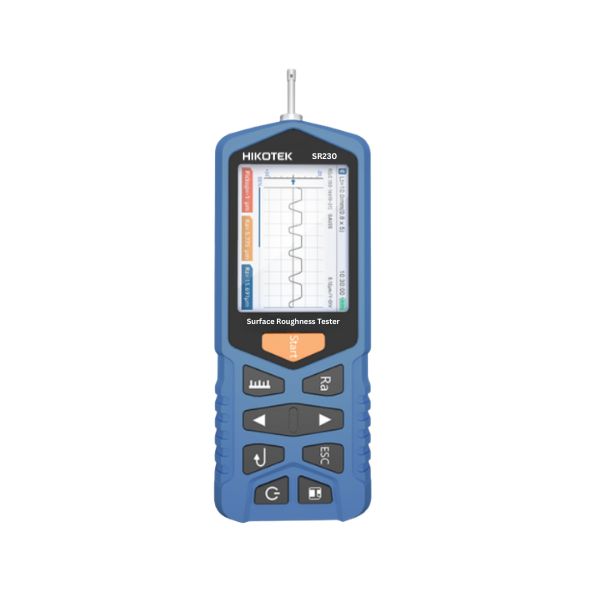

SR230 Surface Roughness Tester

  • Compact mechatronic design for easy portable use.
  • DSP-based control and data processing for fast response and low power consumption.
  • Supports multiple standards including ISO, DIN, ANSI, and JIS.
  • Large-capacity memory for storing up to 100 sets of raw data and waveforms.
  • Real-time clock for measurement record and storage management.
  • Auto sleep and auto shutdown for power saving.
  • PC and printer connectivity, with optional Bluetooth.
  • Optional accessories available for curved surfaces, small holes, measuring platforms, sheaths, and extension rods.
The HIKOTEK SR230 Surface Roughness Tester is a high-precision portable instrument designed for checking the surface smoothness of machined parts. It can be used on flat, inclined, cylindrical, and curved surfaces, and is also suitable for small holes, grooves, and shafts.

SPECIFICATIONS

  • Measuring range, Z-axis (vertical): 160 μm.
  • Measuring range, X-axis (horizontal): 17.5 mm.
  • Resolution, Z-axis: 0.01 μm / ±20 μm; 0.02 μm / ±40 μm; 0.04 μm / ±80 μm.
  • Parameters: Ra, Rq, Rz, Ry (JIS), Rt/Rmax, Rp, Rv, R3z, R3y, Rs, Rsk, Rku, Rsm, Rmr.
  • Graphical display: support curve, roughness profile, direct profile.
  • Filter modes: RC, PC-RC, Gauss, D-P.
  • Sampling length (lr): 0.25 mm, 0.8 mm, 2.5 mm.
  • Evaluation length (ln): ln = lr × n, n = 1 to 5.
  • Measuring principle: displacement differential inductance.
  • Stylus: natural diamond, 90° cone angle, 5 μm tip radius.
  • Measuring force: <4 mN.
  • Guide head: hard alloy, sliding direction radius 40 mm.
  • Traverse speed: 0.135 mm/s at lr=0.25; 0.5 mm/s at lr=0.8; 1 mm/s at lr=2.5.
  • Indication error: not more than ±10%.
  • Indication variability: not more than 6%.
  • Display range, Ra/Rq: 0.005 μm to 16 μm.
  • Display range, Rz/R3z/Ry/Rt/Rp/Rm: 0.02 μm to 160 μm.
  • Display range, Sk: 0 to 100%.
  • Display range, S/Sm: 1 mm.
  • Display range, tp: 0 to 100%.
  • Power supply: built-in rechargeable Li-ion battery, DC 5V / 800 mA charger.
  • Working environment: -20 °C to 40 °C, <90% RH.
  • Storage environment: -40°C to 60°C, <90% RH.
  • Dimensions: 158 × 63.5 × 46 mm.
  • Weight: about 300 g.
