HC270-FF HART Communicator
- Industrial-grade waterproof, dustproof & shock-resistant design (IP67 protection)
- Intrinsically safe, explosion-proof construction, approved for Zone 1 hazardous areas
- Double-color injection-molded housing with outer silicone shell for enhanced drop resistance
- Advanced DD parsing technology supports all HART instrument private menus and detailed configuration
- Includes the latest DD database with free lifetime updates and manual DD file import support

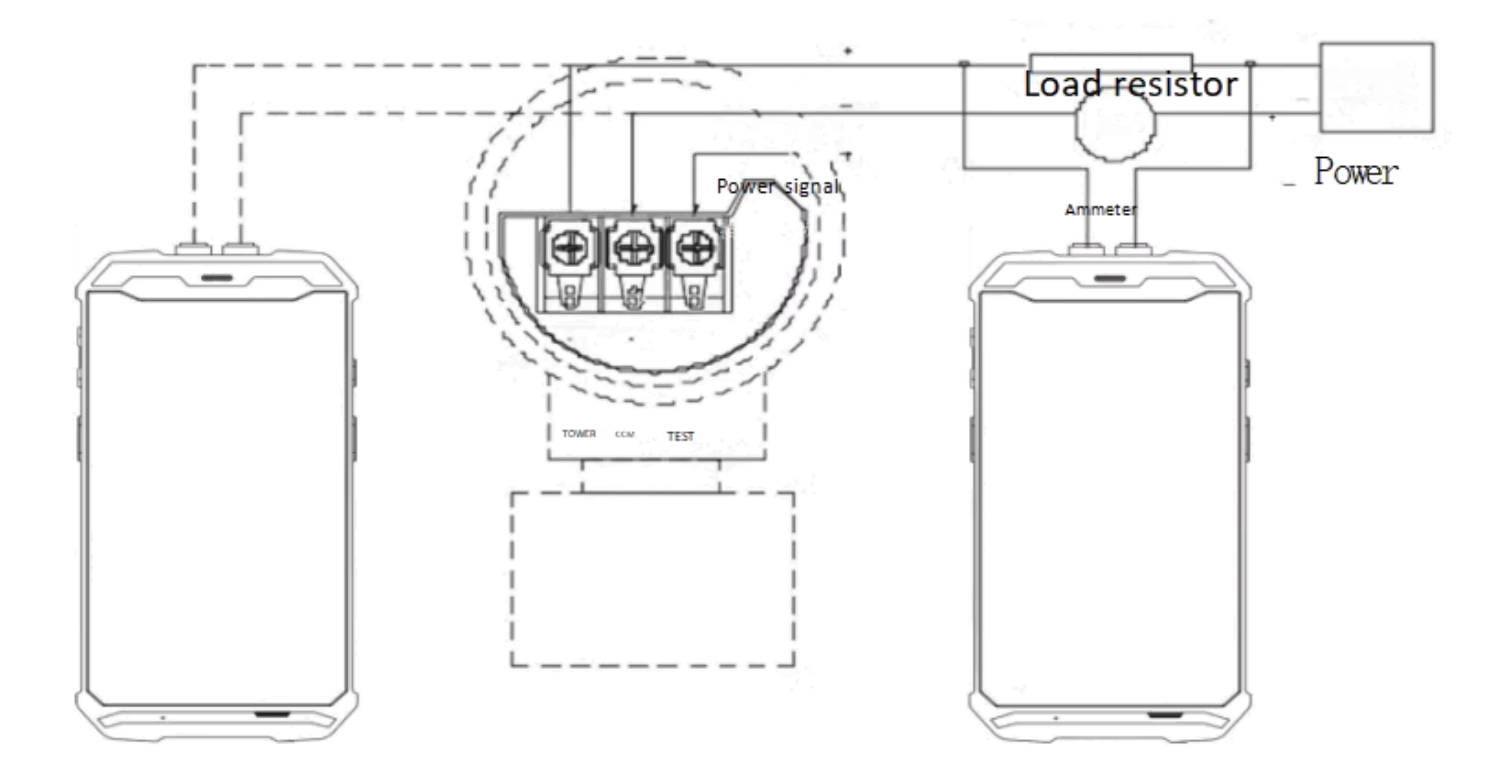

- Built-in 24V / 250Ω resistor, with power supply software-controlled ON/OFF
- Flexible output options: 250Ω resistor only | 250Ω resistor + 24V power supply
- Integrated 0–22 mA current signal generator, software-adjustable and switchable to voltage mode
- Supports internet-based remote debugging of field instruments

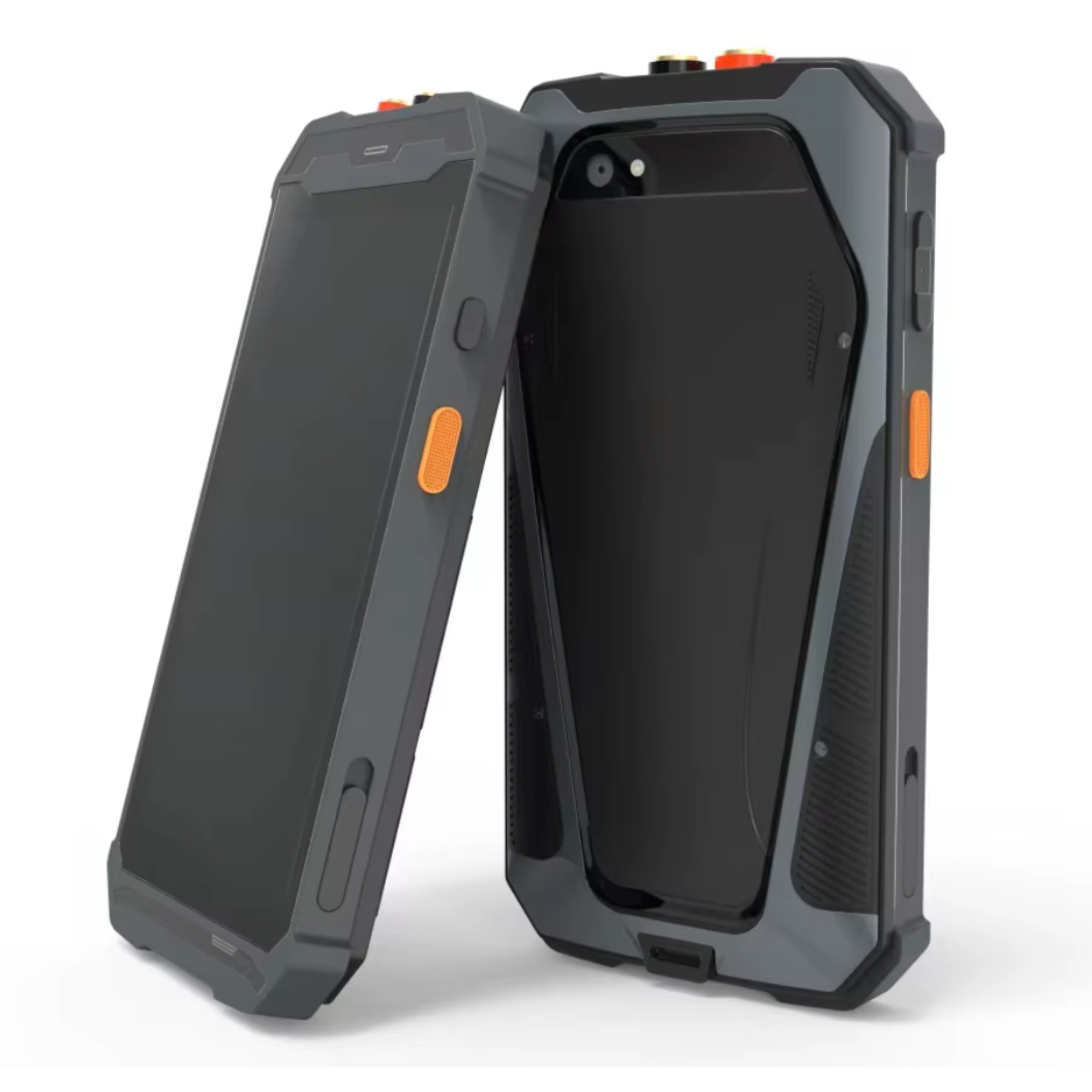

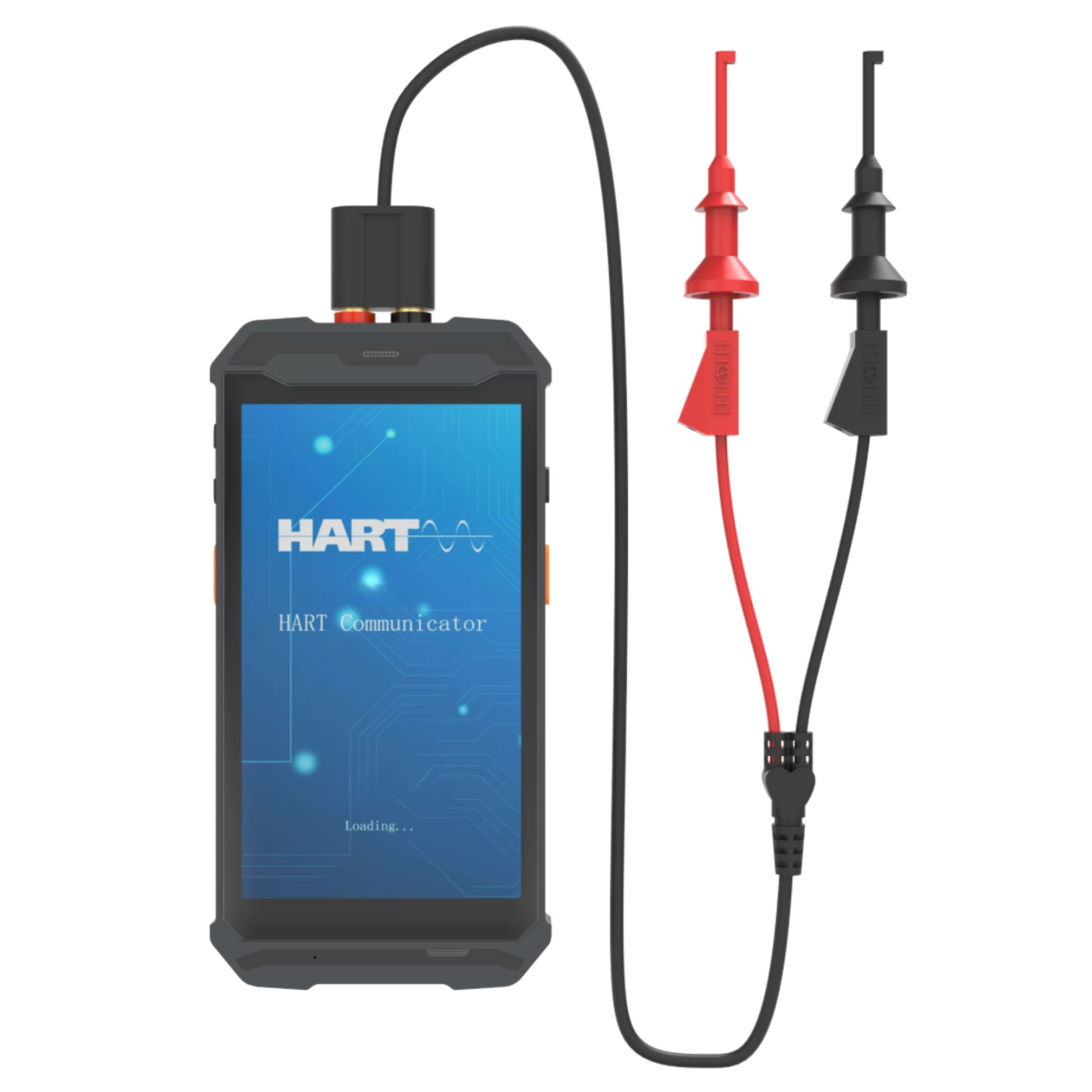

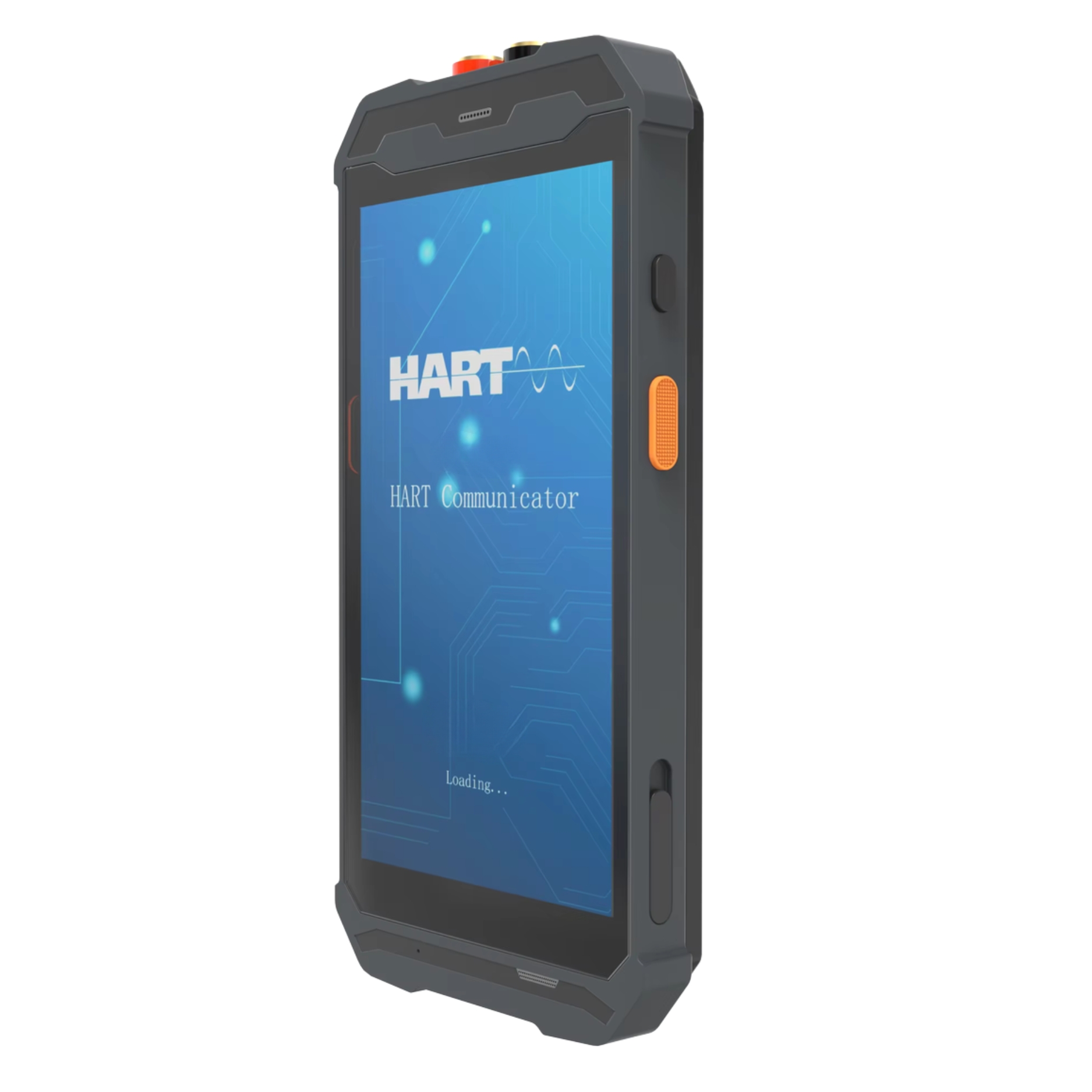

The HIKOTEK HC270 is a multi-functional HART / Foundation Fieldbus (FF) handheld communicator designed for configuration, calibration, and maintenance of field instruments in hazardous and industrial environments. Featuring an intrinsically safe, IP67-rated design with advanced DD parsing technology, the HC270 ensures reliable performance and easy operation in demanding applications.
SPECIFICATIONS
- System & Performance: Processor: Cortex-A53 Octa-Core, 64-bit, 2.0 GHz | Operating System: Android 9.0 | Memory: 4 GB RAM / 64 GB ROM
- Display & Operation: Screen: 5.5-inch capacitive touchscreen | Resolution: 1280 × 720 | Buttons: Power key + 2 customizable keys
- Battery & Power: Battery: 4200 mAh lithium polymer | Standby Time: > 300 hours | Continuous Operation: 12 h (no 24V output) / 10 h (24V / 4 mA) / 8 h (24V / 20 mA) | Charging: Type-C, 5V / 2A
- Communication: HART protocol (FSK, HCF SPEC-054) | Foundation Fieldbus (FF) support | Bluetooth 5.0 (10 m) | Wi-Fi 2.4G / 5G (802.11 a/b/g/n/ac) | IP support: IPv4 / IPv6
- Output Functions: Selectable internal 250Ω resistor / 24V supply | 0–22 mA current generator
- Environmental & Safety: Explosion Rating: Ex ib IIC T4 Gb | Protection Class: IP67 | Operating Temperature: −20°C to +50°C | Humidity: 0–95% RH (non-condensing)
- Physical: Dimensions: 168 × 84 × 17.5 mm | Weight: Approx. 300 g

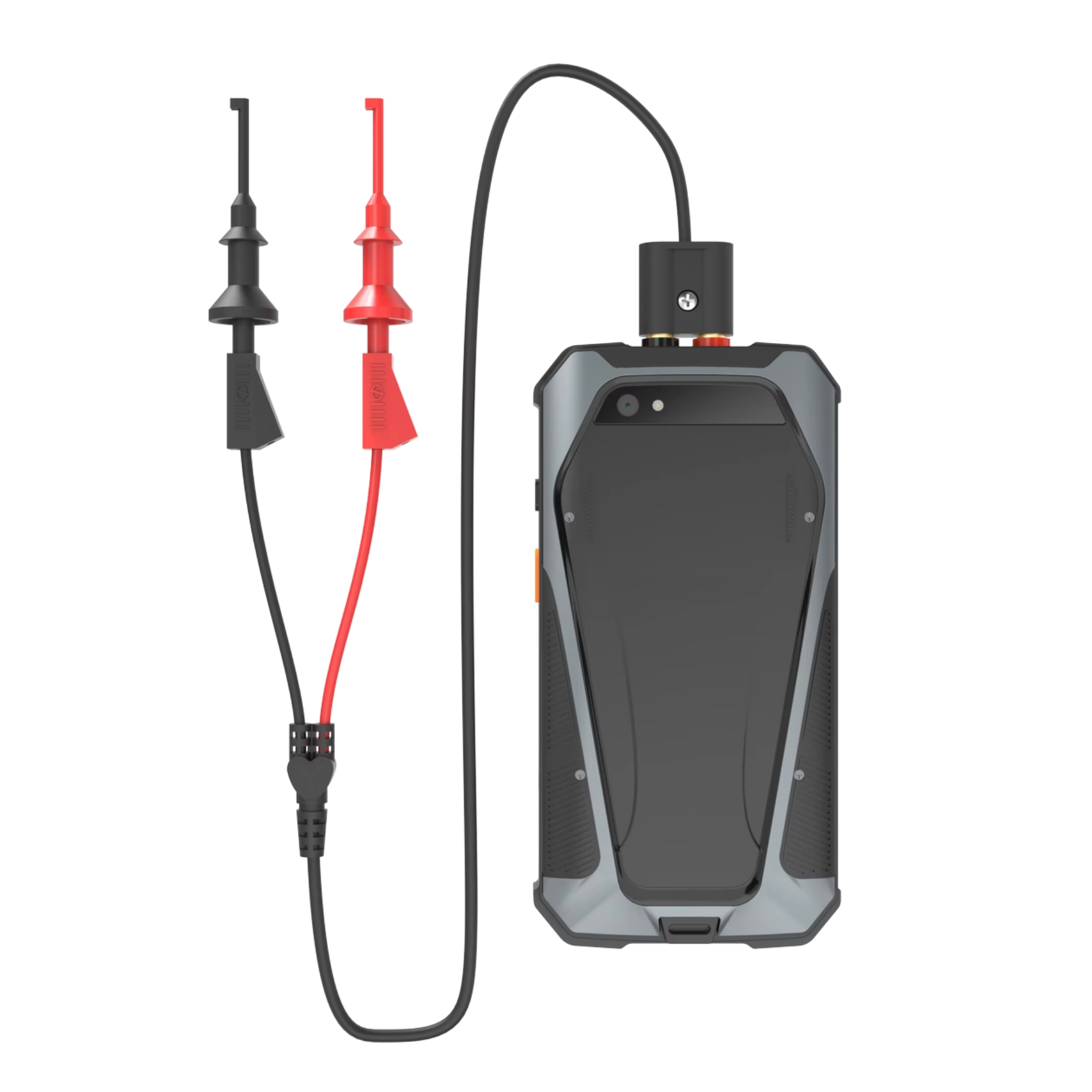

- Package Contents: HIKOTEK HC270 HART Communicator | Test leads with alligator clips | USB Type-C charging cable | User manual
