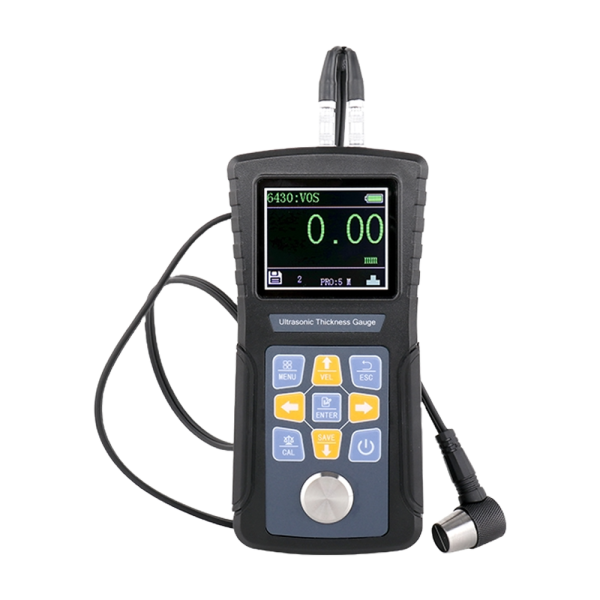

UT110 Ultrasonic Thickness Gauge
- Storage 40 values of saved data.
- Can collocate variety different frequencies wafer sizes of probes.
- Sound velocity calibration function as a known thickness.
- Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.
- 128*64 LCD with LED backlight, color display.
- Auto sleep and auto power off function to conserve battery life.
Price: 360.00 USD
The Hikotek UT110 Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face. The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
SPECIFICATIONS
- Display: 128*64 LCD with LED backlight, Color display
- Measuring Range: (0.75~600)mm (Steel)
- Velocity Range: (1000~9999) m/s
- Resolution: 0.01mm
- Measuring Accuracy: ±(0.5%H+0.04mm); H is thickness value
- Measuring Cycle: Single point measurement 6 times/per
- Data Storage: 40 values of saved data
